Unsere Worldline-Zahlungsterminals

ACHTUNG! Das VALINA-Zahlungsterminal tritt in seine letzte Lebensphase ein! ACHTUNG!

Weitere Informationen finden Sie unten.

Worldline VALINA

Android

Android 4.4

Sicher

PCI PTS 5.x hardware (Neuinstallationen sind bis 04/2027 zulässig)
PIN on Glass zertifiziert(PoG)

Robust

IP65 / IK09
Operating temperature: -20 to 70°C

Integriert

EVA SDM Format
Chipkarte, kontaktlos, Magnetstreifen

Verbunden

Ethernet, 4G
RS232, MDB, LAN, USB

Laden Sie hier das Datenblatt der VALINA herunter.

Behuizing

EVA SDM

85 (W) x 107,5 (H) x 88 (D) mm (3.34x42.3x3.5)

Mounting from inside with EVA mounting plates

Triple-track magstripe-card reader

Status-LEDs zeigen den Status des Terminals und der Transaktion an.

3.5” Capacitive Touchscreen, 64k colors, backlit LCD (320x480)

Chip card reader

Magneet Strip

EVA SDM

85 (W) x 107,5 (H) x 88 (D) mm (3.34x42.3x3.5)

Mounting from inside with EVA mounting plates

Triple-track magstripe-card reader

Status-LEDs zeigen den Status des Terminals und der Transaktion an.

3.5” Capacitive Touchscreen, 64k colors, backlit LCD (320x480)

Chip card reader

Indicatie Leds

EVA SDM

85 (W) x 107,5 (H) x 88 (D) mm (3.34x42.3x3.5)

Mounting from inside with EVA mounting plates

Triple-track magstripe-card reader

Status-LEDs zeigen den Status des Terminals und der Transaktion an.

3.5” Capacitive Touchscreen, 64k colors, backlit LCD (320x480)

Chip card reader

Scherm

EVA SDM

85 (W) x 107,5 (H) x 88 (D) mm (3.34x42.3x3.5)

Mounting from inside with EVA mounting plates

Triple-track magstripe-card reader

Status-LEDs zeigen den Status des Terminals und der Transaktion an.

3.5” Capacitive Touchscreen, 64k colors, backlit LCD (320x480)

Chip card reader

Chipkaart lezer

EVA SDM

85 (W) x 107,5 (H) x 88 (D) mm (3.34x42.3x3.5)

Mounting from inside with EVA mounting plates

Triple-track magstripe-card reader

Status-LEDs zeigen den Status des Terminals und der Transaktion an.

3.5” Capacitive Touchscreen, 64k colors, backlit LCD (320x480)

Chip card reader

Switches

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

2 * SAM Slot

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

Extern Communicatiebord

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

USB 2.0

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

TTL Interface

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

MDB Aansluiting

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

Reset & Menu buttons

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

Voeding 12v

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

Interfaces

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

Micro SD

Debug switches

2xSAM ID-000

Connector optional 4G (with External comm board interface)

USB Slave port

USB Host port

RJ11 RS232 port

RJ45 LAN port (Ethernet 10/100)

MDB interface (Mini-fit – DC)

TTL interface (Micro-fit - IO - DC)

Reset & Menu buttons

12 VDC, 2A via Micro-fit

24 - 45 VDC via MDB

12 VDC, 2A via serial

4 GB RAM MicroSD

ACHTUNG! Dieses VALINA-Zahlungsterminal erreicht seine letzte Lebensphase! ACHTUNG!

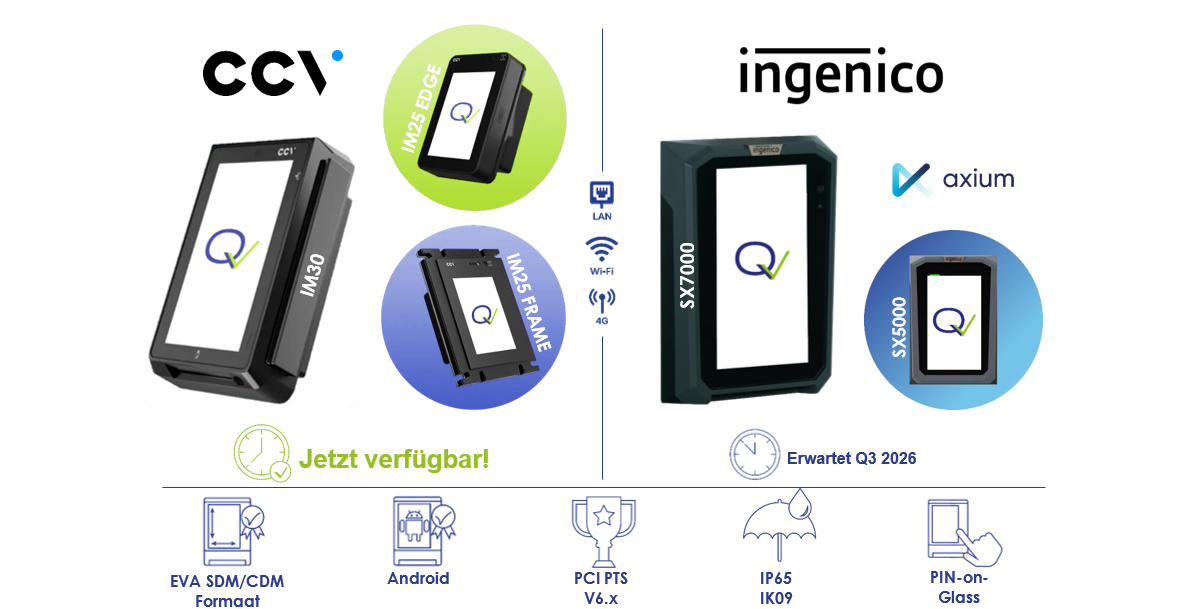

Das VALINA-Zahlungsterminal befindet sich in seiner letzten Phase. Dieses weit verbreitete Terminal wird nicht mehr produziert und kann nur noch bestellt werden, solange der Vorrat reicht. Aus technischen Gründen wird der Betrieb von VALINA-Zahlungsterminals im Mai 2030 eingestellt. Wechseln Sie daher rechtzeitig zu einem Nachfolgemodell!
